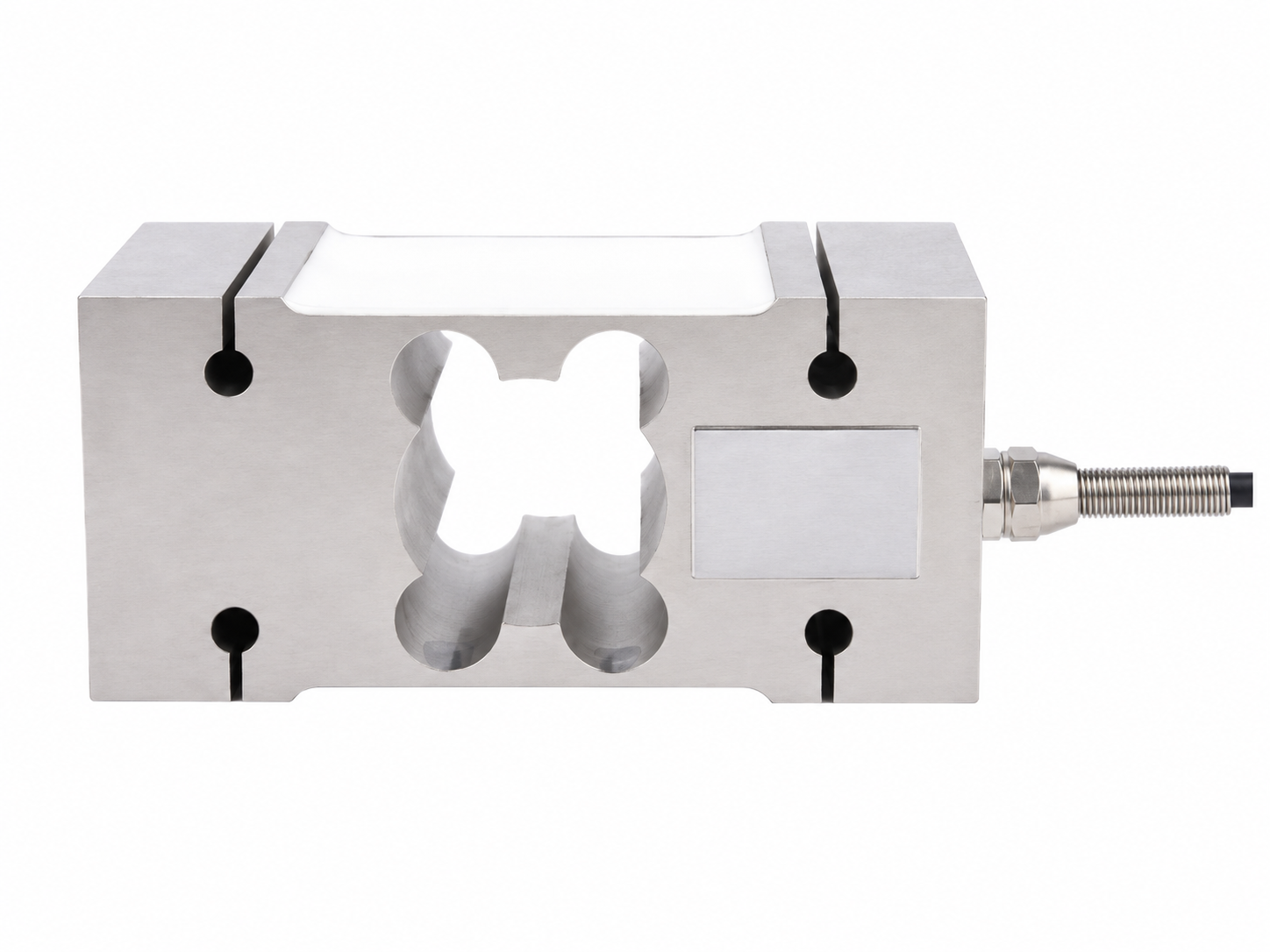

Parallel Beam Load Cell

Core Parameter	Specification
Capacity Range	50 kg to 2 t across MK705 / MK705-A / MK705-B / MK705-C variants
Comprehensive Accuracy	<= 0.03% F.S.
Output Sensitivity	2.0 +/- 0.01 mV/V
Repeatability	+/- 0.02% F.S.
Recommended Excitation	5-12 VDC
Safe Overload	120% F.S.
Operating Temperature	-20 to +60 deg C
Material	MK705: alloy steel; MK705-A/B/C: aluminum alloy
