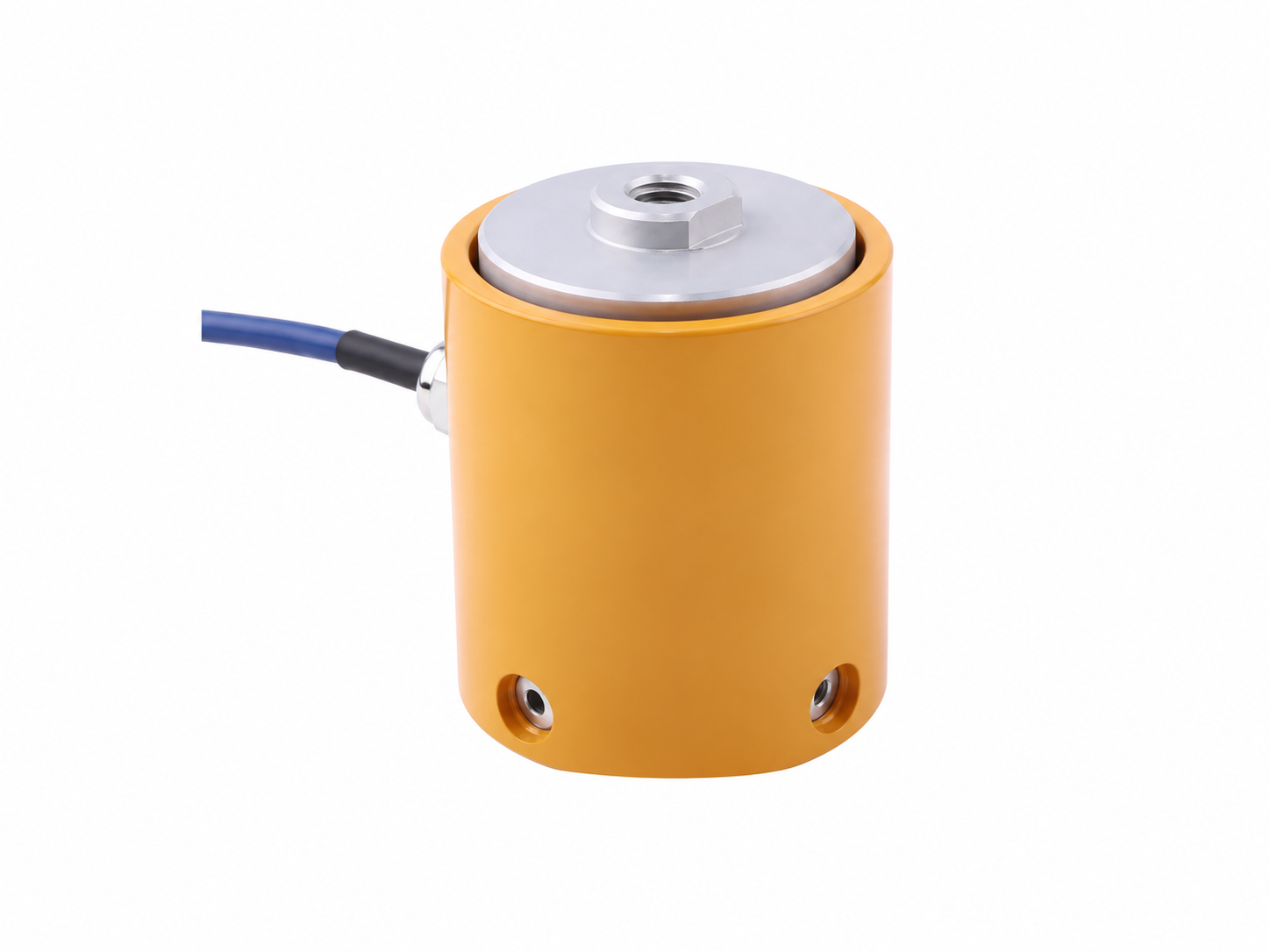

Column Type Load Cell

Core Parameter	Specification
Rated Capacity	10 N to 50 kN (multiple capacity options)
Comprehensive Accuracy	0.05 / 0.1 / 0.3% F.S. (depending on capacity)
Output Sensitivity	2.0 +/- 0.01 mV/V
Recommended Excitation	10 VDC
Safe Overload	120% F.S.
Operating Temperature	-20 to +60 deg C
Material	Aluminum alloy (10 N-5 kN); alloy steel (10-50 kN)
Protection Class	IP66
