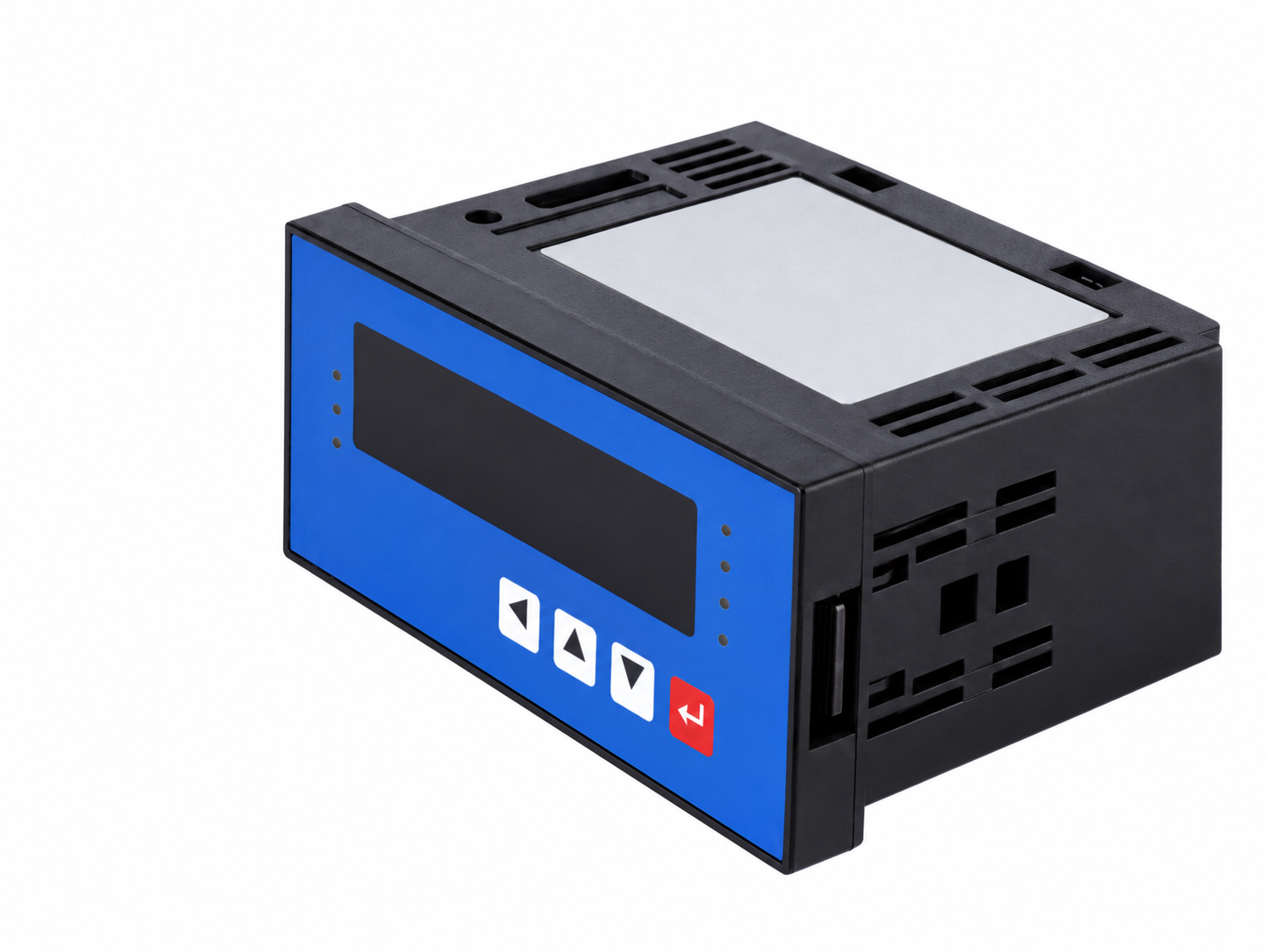

Weighing & Force Indicator

Core Parameter	Specification
Operating Voltage	DC 12-30 V
Load Cell Signal Input	0-39 mV
Excitation Output	5 VDC
Maximum Sampling Frequency	1000 Hz
Nonlinearity	0.002% F.S.
Accuracy	0.01% F.S.
A/D Performance	24-bit, Delta-Sigma
Communication	RS232 / RS485; Modbus RTU / FREE protocol
Optional Analog Output	4-20 mA / 0-5 V / 0-10 V, resolution 1/3000
Operating Temperature / Protection	-30 to +60 deg C / IP65
